        Single-jet

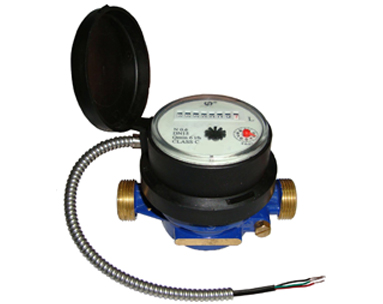

        CD97TAR/LD-15~25E/G (with pulser)


        CD97TAR-15E/G series is an inferential, single-jet type, dry dial (5 digits)cold water meter , with the lower magnet fitted directly to the fan wheel which is the only moving part submerged in water, therefore the meter is ideally suitable for operating with hard and scalling water with sand in suspension without the rapid deterioration of gears which in traditional designs are submerged in water.

        SPECIALITY:
        *Magnetic shield structure, with which the water meter can not be influenced by outside magnetic fields.
        *With the pulse device, and the measured water volume of per pulse may be 1l/pulse, 1l/pulse or 1l/pulse.
        * If replaced with the appropriate materials, it can be used for the hot water meter (the water temperature is above 90℃).

        WORKING CONDITION
        *The max. admissible water pressure: 1.6MPa (16bar)
        *Water temperature: up to 50℃

        Maximum permissible error:
        Between qt (included) and qs is ±2%;
        Between qmin and qt (excluded) is ±5%.
        NOTE: The technical data conform to ISO4064 standard, class B.
        FLOW-ERROR CURVE


        SPECIFICATION AND OVERALL DIMENSIONS
        Description

        Unit

        Hydraulic data and dimensions

        Nominal size

        mm

        15

        20

        25

        inch

        1/2

        3/4

        1

        Overload flow-rate (qs)

        m3/h

        3

        5

        7

        Permanent flow-rate (qp)

        m3/h

        1.5

        2.5

        3.5

        Transitional flow-rate (qt)

        m3/h

        0.12

        0.2

        0.28

        Minimum flow-rate (qmin)

        m3/h

        0.03

        0.05

        0.07

        Max. reading

        m3

        99999.9999

        99999.9999

        99999.9999

        Min. reading

        m3

        0.00005

        0.00005

        0.00005

        Max. working pressure

        MPa

        1.6

        1.6

        1.6

        ΔP at the qs

        MPa

        ≤0.1

        ≤0.1

        ≤0.1

        L

        mm

        110

        130

        160

        I

        mm

        190

        234

        280

        H

        mm

        86

        86

        113

        B

        mm

        81

        81

        94

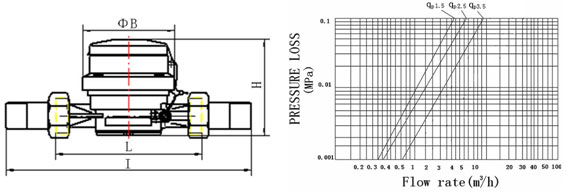

        OVERALL DIMENSIONS                                                                  PRESSURE LOSS CURVE
